7124(公制外螺纹24°重系列/英管内螺纹)

7124(公制外螺纹24°重系列/英管内螺纹)

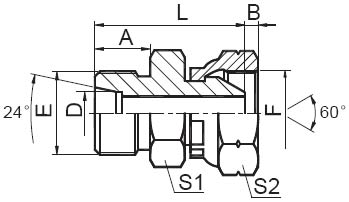

编码 型号 螺纹 管子外径 尺寸
E F D 　 A B L S1 S2
CH633001500 7124-14-04S M14×1.5 G1/4"×19 6 　 13.5 5.5 30.5 17 19
CH633001600 7124-16-04S M16×1.5 G1/4"×19 8 　 13.5 5.5 30.5 17 19
CH633001700 7124-18-06S M18×1.5 G3/8"×19 10 　 13.5 6.3 31.5 19 22
CH633001800 7124-20-06S M20×1.5 G3/8"×19 12 　 13.5 6.3 33.5 22 22
CH633001900 7124-22-08S M22×1.5 G1/2"×14 14 　 14 7.5 36 24 27
CH633002000 7124-24-08S M24×1.5 G1/2"×14 16 　 14 7.5 38 27 27
CH633002100 7124-30-12S M30×2 G3/4"×14 20 　 19 10.9 45 32 32
CH633002200 7124-36-12S M36×2 G3/4"×14 25 　 20 10.9 47 41 32
CH633002300 7124-36-16S M36×2 G1"×11 25 　 20 11.7 49 41 41
CH633002400 7124-42-20S M42×2 G1.1/4"×11 30 　 20 11 51.5 46 50
CH633002500 7124-52-24S M52×2 G1.1/2"×11 38 　 22 13 56 55 55
