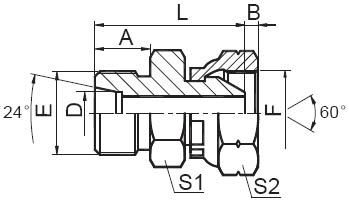

7124(公制外螺纹24°轻系列/英管内螺纹)
编码 |
型号 |
螺纹 |
管子外径 |
尺寸 |
E |
F |
D |
A |
B |
L |
S1 |
S2 |
CH633000100 |
7124-12-2 |
M12×1.5 |
G1/8"×28 |
6 |
11 |
5.5 |
26 |
14 |
14 |
CH633000200 |
7124-14-04 |
M14×1.5 |
G1/4"×19 |
8 |
13 |
5.5 |
30.5 |
17 |
19 |
CH633000300 |
7124-16-04 |
M16×1.5 |
G1/4"×19 |
10 |
13.5 |
5.5 |
30.5 |
17 |
19 |
CH633000400 |
7124-16-06 |
M16×1.5 |
G3/8"×19 |
10 |
13.5 |
6.3 |
32 |
17 |
22 |
CH633000500 |
7124-16-08 |
M16×1.5 |
G1/2"×14 |
10 |
13.5 |
7.5 |
33.5 |
19 |
27 |
CH633000600 |
7124-18-06 |
M18×1.5 |
G3/8"×19 |
12 |
13.5 |
6.3 |
32 |
19 |
22 |
CH633000700 |
7124-22-06 |
M22×1.5 |
G3/8"×19 |
15 |
13.5 |
6.3 |
33.5 |
24 |
22 |
CH633000800 |
7124-22-08 |
M22×1.5 |
G1/2"×14 |
15 |
13.5 |
7.5 |
35.5 |
24 |
27 |
CH633000900 |
7124-26-08 |
M26×1.5 |
G1/2"×14 |
18 |
14 |
7.5 |
38 |
27 |
27 |
CH633001000 |
7124-30-12 |
M30×2 |
G3/4"×14 |
22 |
18 |
10.9 |
44 |
32 |
32 |
CH633001100 |
7124-36-12 |
M36×2 |
G3/4"×14 |
28 |
18 |
10.9 |
44 |
38 |
32 |
CH633001200 |
7124-36-16 |
M36×2 |
G1"×11 |
28 |
18 |
11.7 |
45 |
38 |
41 |
CH633001300 |
7124-45-20 |
M45×2 |
G1.1/4"×11 |
35 |
19 |
11 |
50.5 |
46 |
50 |
CH633001400 |
7124-52-24 |
M52×2 |
G1.1/2"×11 |
42 |
19 |
13 |
53 |
55 |
55 |
|
|
|
|
